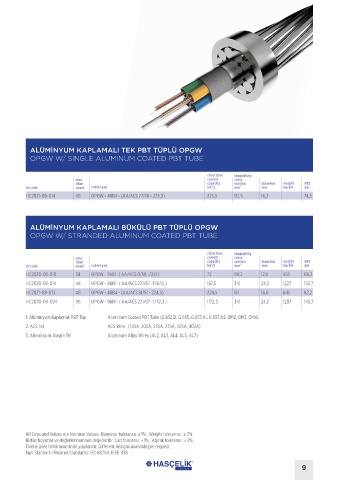

Page 9 - Hasçelik Fiber | Online Katalog 2022

ALÜMİNYUM KAPLAMALI TEK PBT TÜPLÜ OPGW
OPGW W/ SINGLE ALUMINUM COATED PBT TUBE

short time supporting
max current cross
fiber capacity section diameter weight RTS
hc code count cable type kA²/s mm² mm kg/km kN
HC2021-08-014 48 OPGW - 48B4 - (AA/ACS 77/46 - 225,5) 225,5 151,5 16,3 74,5

ALÜMİNYUM KAPLAMALI BÜKÜLÜ PBT TÜPLÜ OPGW
OPGW W/ STRANDED ALUMINUM COATED PBT TUBE

short time supporting
max current cross
fiber capacity section diameter weight RTS
hc code count cable type kA²/s mm² mm kg/km kN
HC2020-03-010 24 OPGW - 24B1- ( AA/ACS 0/58 -72,0 ) 72 89,2 12,5 453 66,2
HC2020-03-014 48 OPGW - 48B1- ( AA/ACS 221/67 -1.167,5 ) 167,5 341 24,5 1227 145,7
HC2021-08-013 48 OPGW - 48B4 - (AA/ACS 51/51 - 224,5) 224,5 151 16,6 645 82,2
HC2020-04-024 96 OPGW - 96B1- ( AA/ACS 221/67 -1.172,3 ) 1172,3 341 24,5 1207 145,7

1. Alüminyum Kaplamalı PBT Tüp Aluminum Coated PBT Tube (G.652.D, G.655, G.657.A1, G.657.A2, OM2, OM3, OM4)
2. ACS Tel ACS Wire (14SA, 20SA, 23SA, 27SA, 30SA, 40SA)
3. Alüminyum Alaşım Tel Aluminum Alloy Wires (AL2, AL3, AL4, AL5, AL7)

All Sizes and Values are Nominal Values. Diameter tolerance: ± 1% ; Weight tolerance : ± 2%
Bütün boyutlar ve değerler nominal değerlerdir. Çap toleransı: ± 1% ; Ağırlık toleransı : ± 2%
Talebe göre farklı tasarımlar yapılabilir. Different designs available per request.
İlgili Standart / Related Standards: IEC 60794, IEEE 1138
