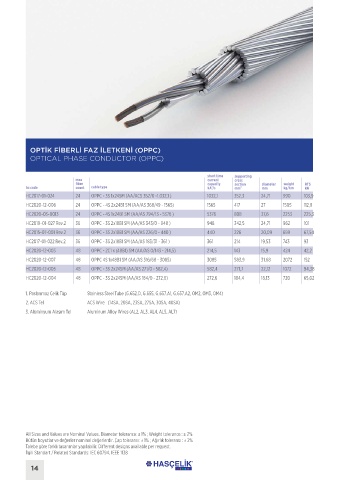

OPTİK FİBERLİ FAZ İLETKENİ (OPPC)
OPTICAL PHASE CONDUCTOR (OPPC)

short time supporting
max current cross
fiber capacity section diameter weight RTS
hc code count cable type kA²/s mm² mm kg/km kN
HC2017-01-024 24 OPPC - 3S 1x24SM (AA/ACS 352/0 -1.032,1 ) 1032,1 352,3 24,71 990 103,9
HC2020-12-006 24 OPPC - 4S 2x24B1 SM (AA/AS 368/49 - 1565) 1565 417 27 1505 112,9
HC2020-03-0013 24 OPPC - 4S 1x24B1 SM (AA/AS 794/13 - 5376 ) 5376 808 37,6 2253 225,3
HC2019-01-027 Rev.2 36 OPPC - 3S 2x18B1 SM (AA/AS 343/0 - 948 ) 948 342,5 24,71 962 101
HC2015-07-001 Rev.2 36 OPPC - 3S 2x18B1 SM (AA/AS 226/0 - 440 ) 440 226 20,09 659 67,54
HC2017-01-022 Rev.2 36 OPPC - 3S 2x18B1 SM (AA/AS 183/31 - 361 ) 361 214 19,53 743 93
HC2020-12-003 48 OPPC - 2C1 x (48B1) SM (AA/AS 0/143 - 214,5) 214,5 143 15,9 424 42,2
HC2020-12-007 48 OPPC 4S 1x48B1 SM (AA/AS 516/68 - 3085) 3085 583,9 31,68 2072 152
HC2020-12-005 48 OPPC - 3S 2x24SM (AA/AS 271/0 - 582,4) 582,4 271,7 22,12 1072 94,38
HC2020-12-004 48 OPPC - 3S 2x24SM (AA/AS 184/0 - 272,6) 272,6 184,4 18,13 720 65,02

1. Paslanmaz Çelik Tüp Stainless Steel Tube (G.652.D, G.655, G.657.A1, G.657.A2, OM2, OM3, OM4)
2. ACS Tel ACS Wire (14SA, 20SA, 23SA, 27SA, 30SA, 40SA)
3. Alüminyum Alaşım Tel Aluminum Alloy Wires (AL2, AL3, AL4, AL5, AL7)

All Sizes and Values are Nominal Values. Diameter tolerance: ± 1% ; Weight tolerance : ± 2%
Bütün boyutlar ve değerler nominal değerlerdir. Çap toleransı: ± 1% ; Ağırlık toleransı : ± 2%
Talebe göre farklı tasarımlar yapılabilir. Different designs available per request.
İlgili Standart / Related Standards: IEC 60794, IEEE 1138

14
