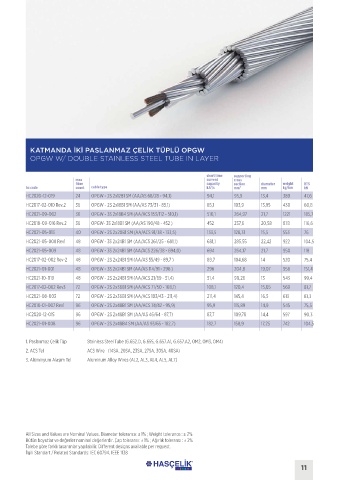

KATMANDA İKİ PASLANMAZ ÇELİK TÜPLÜ OPGW
OPGW W/ DOUBLE STAINLESS STEEL TUBE IN LAYER
short time supporting
max current cross
fiber capacity section diameter weight RTS
hc code count cable type kA²/s mm² mm kg/km kN
HC2020-12-019 24 OPGW - 2S 2x12B1 SM (AA/AS 68/28 - 94,1) 94,1 95,9 13,4 389 47,6
HC2017-02-010 Rev.2 36 OPGW - 2S 2x18B1 SM (AA/AS 73/31 - 85,1) 85,1 103,9 13,95 438 60,8
HC2021-09-002 36 OPGW - 3S 2x18B4 SM (AA/ACS 153/112 - 510,1) 510,1 264,97 21,7 1221 185,7
HC2018-09-016 Rev.2 36 OPGW- 3S 2x18B1 SM (AA/AS 190/48 - 452 ) 452 237,6 20,58 878 116,6
HC2021-05-013 40 OPGW - 2S 2x20B1 SM (AA/ACS 91/38 - 133,5) 133,5 128,31 15,5 553 76
HC2021-05-008 Rev1 48 OPGW - 3S 2x24B1 SM (AA/ACS 261/25 - 681,1) 681,1 285,55 22,42 922 104,5
HC2021-05-009 48 OPGW - 3S 2x24B1 SM (AA/ACS 226/38 - 694,0) 694 264,17 21,7 950 118
HC2017-02-002 Rev-2 48 OPGW - 2S 2x24B1 SM (AA/AS 55/49 - 89,7 ) 89,7 104,68 14 520 75,4
HC2021-01-001 48 OPGW - 3S 2x24B1 SM (AA/AS 114/91 - 296 ) 296 204,8 19,07 956 151,4
HC2021-10-019 48 OPGW - 2S 2x24B1 SM (AA/ACS 21/69 - 51,4) 51,4 90,26 13 543 99,4
HC2017-02-002 Rev3 72 OPGW - 2S 2x36B1 SM (AA/ACS 71/50 - 108,1) 108,1 120,4 15,05 569 81,7
HC2021-08-003 72 OPGW - 2S 2x36B1 SM (AA/ACS 103/43 - 211,4) 211,4 145,4 16,5 613 81,3
HC2018-01-007 Rev1 96 OPGW - 2S 2x48B1 SM (AA/ACS 74/42 - 95,9) 95,9 115,89 14,9 545 75,5
HC2020-12-015 96 OPGW - 2S 2x48B1 SM (AA/AS 46/64 - 87,7) 87,7 109,78 14,4 597 90,3
HC2021-01-008 96 OPGW - 2S 2x48B4 SM (AA/AS 93/65 - 182,7) 182,7 158,9 17,25 742 104,5
1. Paslanmaz Çelik Tüp Stainless Steel Tube (G.652.D, G.655, G.657.A1, G.657.A2, OM2, OM3, OM4)
2. ACS Tel ACS Wire (14SA, 20SA, 23SA, 27SA, 30SA, 40SA)
3. Alüminyum Alaşım Tel Aluminum Alloy Wires (AL2, AL3, AL4, AL5, AL7)
All Sizes and Values are Nominal Values. Diameter tolerance: ± 1% ; Weight tolerance : ± 2%
Bütün boyutlar ve değerler nominal değerlerdir. Çap toleransı: ± 1% ; Ağırlık toleransı : ± 2%
Talebe göre farklı tasarımlar yapılabilir. Different designs available per request.
İlgili Standart / Related Standards: IEC 60794, IEEE 1138
