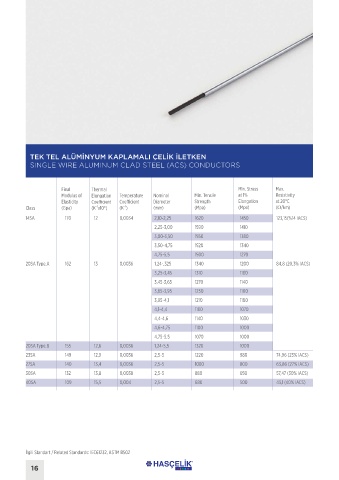

TEK TEL ALÜMİNYUM KAPLAMALI ÇELİK İLETKEN
SINGLE WIRE ALUMINUM CLAD STEEL (ACS) CONDUCTORS
Final Thermal Min. Stress Max.
Modulus of Elongation Temperature Nominal Min. Tensile at 1% Resistivity
Elasticity Coefficient Coefficient Diameter Strength Elongation at 20°C
Class (Gpa) (K ¹x10°) (K ¹) (mm) (Mpa) (Mpa) (Ω/km)
-
-
14SA 170 12 0,0034 2,10-2,25 1620 1450 123,15(%14 IACS)
2,25-3,00 1590 1410
3,00-3,50 1550 1380
3,50-4,75 1520 1340
4,75-5,5 1500 1270
20SA Type.A 162 13 0,0036 1,24-,325 1340 1200 84,8 (20,3% IACS)
3,25-3,45 1310 1180
3,45-3,65 1270 1140
3,65-3,95 1250 1100
3,95-4,1 1210 1100
4,1-4,4 1180 1070
4,4-4,6 1140 1030
4,6-4,75 1100 1000
4,75-5,5 1070 1000
20SA Type.B 155 12,6 0,0036 1,24-5,5 1320 1000
23SA 149 12,9 0,0036 2,5-5 1220 980 74,96 (23% IACS)
27SA 140 13,4 0,0036 2,5-5 1080 800 63,86 (27% IACS)
30SA 132 13,8 0,0038 2,5-5 880 650 57,47 (30% IACS)
40SA 109 15,5 0,004 2,5-5 680 500 43,1 (40% IACS)
İlgili Standart / Related Standards: IEC61232, ASTM B502
